Value of gadoxetic acid-enhanced MRI for microvascular invasion of small hepatocellular carcinoma: a retrospective study

Abstract

Background

The objective of this study was to analyze the accuracy of gadolinium–ethoxybenzyl–diethylenetriamine penta–acetic acid enhanced magnetic resonance imaging (Gd–EOB–DTPA–MRI) for predicting microvascular invasion (MVI) in patients with small hepatocellular carcinoma (sHCC) preoperatively.

Methods

A total of 60 sHCC patients performed with preoperative Gd–EOB–DTPA–MRI in the Harbin Medical University Cancer Hospital from October 2018 to October 2019 were involved in the study. Univariate and multivariate analyses were performed by chi–square test and logistic regression analysis. The sensitivity, specificity, accuracy, positive predictive value, and negative predictive value of Gd–EOB–DTPA–MRI were performed by receiver operating characteristic (ROC) curves.

Results

Univariate analysis indicated that alanine aminotransferase (≥ 39.00U/L), poorly differentiated pathology, and imaging features including grim enhancement, capsule enhancement, arterial halo sign and hepatobiliary features (tumor highly uptake, halo sign, spicule sign and brush sign) were associated with the occurrence of MVI (p < 0.05). Multivariate analysis revealed that rim enhancement and hepatobiliary spicule sign were independent predictors of MVI (p < 0.05). The area under the ROC curve was 0.917 (95% confidence interval 0.838–0.996), and the sensitivity was 94.74%.

Conclusions

The morphologies of hepatobiliary phase imaging, especially the spicule sign, showed high accuracy in diagnosing MVI of sHCC. Rim enhancement played a significant role in diagnosing MVI of sHCC.

Peer Review reports

Background

Hepatocellular carcinoma (HCC) accounts for the majority of malignant primary hepatic tumors [1]. It ranks sixth in terms of incidence and is the fourth most common cause of cancer mortality worldwide [2]. Small hepatocellular carcinoma (sHCC, diameter ≤ 3 cm) is an early malignant tumor with a relatively good prognosis. Surgical resection, liver transplantation, and radiofrequency ablation are the primary curative treatment strategies for patients with sHCC [3]. However, some patients may relapse because of microvascular invasion (MVI) after the radical operation, causing an unsatisfactory prognosis [4]. Therefore, predicting MVI of sHCC before the surgical operation could guide the clinician to choose proper strategies, then improving outcomes of patients.

Gadolinium–ethoxybenzyl–diethylenetriamine penta–acetic acid (Gd–EOB–DTPA) is well known as a perfect liver–specific contrast agent. Due to hepatic cell uptake, it can distinguish abnormal lesions from normal liver parenchyma easily and improve small lesions′ detection rate [5, 6]. Hence, gadoxetic acid is considered as the most critical contrast medium for diagnosing and detecting HCC. Besides, the studies that predicting MVI ofsHCC by Gd–EOB–DTPA enhanced magnetic resonance imaging (Gd–EOB–DTPA–MRI) before surgery were relatively immature. Some studies had attempted to predict MVI preoperatively by Gd–EOB–DTPA–MRI [7,8,9,10,11,12,13,14]. Peritumoral hyper enhancement on the arterial phase [15] and hypo–uptake on hepatobiliary phase (HBP)are known as prominent risk factors of MVI [16, 17]. However, to the best of our knowledge, few systematic study assessed the efficacy of Gd–EOB–DTPA–MRI in predicting MVI of sHCC. Our study intergrated the imaging and clinicopathological features and aimed to find effective marker sin predicting MVI of sHCC preoperatively.

Methods

Patients

A total of 130 HCC patients who received curative hepatic resection at our hospital between October 2018 and October 2019 were enrolled in this study. The inclusion criteria for our study were as follow: (a) HCCs′ diameters were equal to or less than 3 cm in maximum; (b) Patients underwent preoperative Gd–EOB–DTPA–MRI within one month before surgery; (c) There were no grossly vascular tumor thrombosis or extrahepatic metastasis on preoperative imaging evaluation;(d) There were no preoperative treatments; (e) Full histologic description was available in the pathologic reports and imaging quality adequate for analysis; (f) All malignant nodules were involved for analysis in patients with multiple sHCCs. Finally, 62 nodules in 60 patients were included in the present retrospective study (Fig. 1).This study was approved by the Ethics Review Board of Harbin Medical University. The requirement of informed consent from the patients was waived because of the retrospective design of this study, and patients′ information was protected.

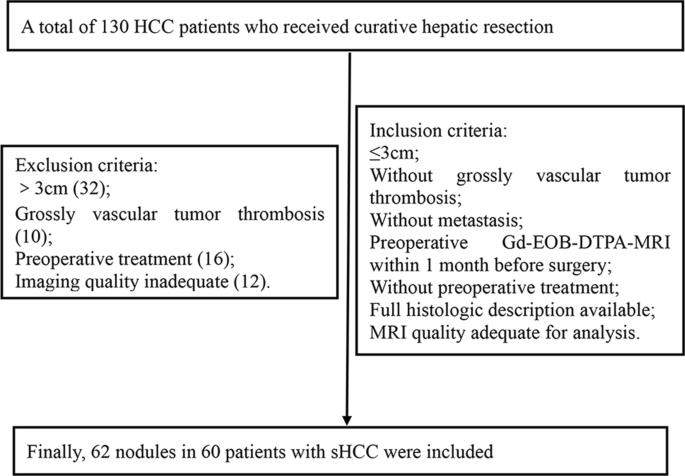

Fig. 1
figure 1

Flow chart shows study population and inclusion criteria

MRI

MRI Technique

All MRI examinations were performed by a 3.0 T system (Achieva, Philips Medical Systems, Best, the Netherlands) and scanned from the top to the lower edge of the liver tissue. An axial fat–suppressed respiratory–triggered T2-weighed images (T2WI) single–shot turbo spin echo (TR/TE = 535 ms/75 ms, slice thickness/gap = 7/1 mm, FOV = 350 × 392 mm, matrix size = 232 × 199), a coronal breath–hold T2WI single–shot turbo spin echo (TR/TE = 1100 ms/80 ms, slice thickness/gap = 6/1 mm, FOV = 350 × 346 cm, matrix size = 292 × 253), an axial breath–hold dual–echo (in–phase and opposed–phase) T1–weighte dimages (T1WI) fast field–echo (TR/TE1/TE2 = 106 ms/1.15 ms/2.3 ms, slice thickness/gap = 7/1 mm, FOV = 400 × 322 cm, matrix size = 244 × 181). Dynamic MRI study was performed with a fat–suppressed three–dimensional volumetric interpolated breath–hold T1WI gradient–echo imaging. The acquisition parameters were section thickness and interval 5/2.50 mm, TR/TE = 3.60 ms/1.3–2 ms, field–of–view 320 × 427 cm, matrix size = 200 × 250. Patients were maintained at a supine position, advanced head position, and injected the Gd–EOB–DTPA contrast agent (Trade name Primovist, Bayer Schering, Germany) with a concentration of 0.25 mol/l (10 ml). The injection dose was 0.1 ml/kg body weight, and the injection flow rate was 1 ml/s, and then followed by 20 ml physiological saline. Arterial phase (AP), portal vein phase (PVP), equilibrium phase (EP), and transition period were obtainedat 25 s, 55 s, 90 s, and 180 s respectively. HBP images were obtained at 20 min after agents were injected.

Image analysis

Preoperative MRI images were retrospectively evaluated using a Picture Archiving and Communication System (PACS; GE Medical Systems Integrated Imaging Solutions, Mt. Prospect, IL, USA) with an optimal window setting adjustment in each case. Two experienced abdominal radiologists interpreted the imaging analysis (with 12 and 20 years of experience in HCC, respectively). They were blind to clinical, pathological and MVI information.

Our study evaluated the imaging features of each sHCC and focused on the following imaging features.

Non–enhancement imaging

(a) Mosaic architecture: it is anancillary feature of Liver Imaging Reporting And Data Systemthat is favoring HCC in particular (American College of Radiology (ACR). Liver Reporting & Data System (LI-RADS). ACR website.www.acr.org/Clinical-Resources/Reporting-and-Data-Systems/LI-RADS.). Mosaic architecture refers to the difference present within mass of randomly distributed internal nodules or compartments differing in enhancement, attenuation, intensity, shape, and size and often separated by fibrous separations [18]. It is characteristic of a heterogeneous signal on T2WI [19]; (b) Intralesional fat: the chemical shift of intralesional fat cause an area shows significantly lower signal intensity (SI) on opposed–phase imagesT1WI compared with the SI in-phase images [20], which confirmed the presence of steatosis [21]; (c) intratumor hemorrhage: with ahyper–SI on unenhanced T1WI and a hypo–SI on T2WI [21]; (d) Iso/Hyperintense SI (T1WI):isointense (hyper–isointense) SI in the lesion on T1WI; (e) T2–weighted and diffusion-weighted imaging (T2–DW) mismatch: T2–DW mismatch mainly means a morphological mismatch, with a larger mass on thediffusion weighted imaging (DWI) images than T2WI images. Because of the image distortion on the DWI images, it was not accurate that only compare the lesion diameter or area on DWI with T2WI. So, we added the other requirement. The mismatch region's intensity on DWI was lower than the tumor itself but higher than the liver parenchyma. These conditions are the same as the previous study [22] (Figs. 2, 3); (f) Morphology: it was assessed on T2WI and categorized as round, lobulated and irregular shape.

Fig. 2
figure 2

A 54-year-old woman with sHCC with MVI. a T2WI shows a high signal intensity hepatic mass with round shape and smooth margins. b DWI shows mismatch region compared to T2WI (thin arrow)

Fig. 3
figure 3

A 69-year-old woman with sHCC with MVI. a T2WI shows a high signal intensity hepatic mass with round shape and smooth margins. b DWI shows mismatch region compared to T2WI (thin arrow)

Enhancement without HBP imaging

(g) AP hyper–enhancement: it was referred to AP enhancement that unequivocally greater than the background of hepatic parenchyma rather than a rim structure; (h) Washout: it was based on AP hyper–enhancement and followed by a lower SI than the normal hepatic parenchyma on PVP and/or EP [23]; (i) Rim enhancement: it was defined as irregular ring–like enhancement with relatively hypovascular central areas in the AP; (j) Capsule enhancement: it was assessed during EP and defined as thin, linear and enhanced structure surrounding the tumor; (k) AP halo sign: it was described as an irregular and ring–like enhancement sign that adjacent to tumor border.

HBP imaging

(l) HBP high uptake: it shows an increased tumor uptake of contrast agents and as lightly high SI in the lesion area [24, 25]. (m) HBP halo sign: it was a hypo–intensity ring around tumors [15]. (n) HBP morphology: it was categorized on T2WI images. (o) HBP spicule sign: it was a thick, blurred, and pseudopodal structure. (p) HBP brush sign: it was the edges of the tumor and appeared as a blurry, small corner projection (Fig. 4).

Fig. 4
figure 4

Illustration of five morphologic features on hepatobiliary phase and sketch map. a round shape of sHCC with 6.8% (3/44) MVI–positive. b Lobulated shape of sHCC with 45.8% (11/24) MVI–positive. c Irregular shape of sHCC with 80% (4/5) MVI–positive. d Spicule sign of sHCC with 80% (12/15) MVI–positive. e bush sign of sHCC with 66.7% (8/12) MVI–positive

Pathology

The diagnosis of MVI was based on histologic specimens obtained from surgical resection in all patients. Based on the World Health Organization classification system, an experienced pathologist (with nine years of experience) who was blind to all clinical and MRI results confirmed the histologic diagnosis and assessed histologic grade, vascular invasion, and tumor diameter.

According to the classification proposed by the General Rules of the Clinical and Pathological Study of Primary Liver Cancer in Japan [26], we classified the tumor grade into highly, moderately and lowly differentiated. Besides, the predominant grade was assigned when grades coexisted. The tumor diameter was defined as the maximum diameter of the resected tumor specimen.

We consider that pathological materials should combine with the MRI findings. Once patients with MVI areassessed before surgery, the scope of surgery or pathological materials should be expanded in the area where the MVI is suspected.

Statistical analysis

We used SPSS software (version 22.0, IBM) to analyze all data. Categorical variables were compared by the chi–square test and followed by a multivariate logistic regression analysis when the variables were significant in the chi–square test. Then we divided all features into Non–HBP (non–enhancement and enhancement without HBP), HBP and the combination of those two phases. We performed the logistic regression analysis to assess potential imaging predictors for MVI in different phases. Variables with p < 0.05 in the uni variate analysis were applied to multivariate logistic regression analysis. Features with p value less than 0.05 were considered statistically significant. A receiver operating characteristic (ROC) curves were performed to evaluate the diagnostic ability of each phase and their combination. The value of sensitivity (SE), specificity (SP), accuracy, positive predictive value (PPV), and negative predictive value (NPV) in these three parts were also calculated. Additionally, to test the generalizability of the tested and the inter observer variability of the radiological features, we assessed the intra class correlation coefficient test (ICC) (ĸ = 0.00–0.20, poor agreement; ĸ = 0.21–0.40, fair agreement; ĸ = 0.41–0.60, moderate agreement; ĸ = 0.61–0.80, good agreement; ĸ = 0.81–1.00, excellent agreement) [27].

Results

Clinicopathological features results

Among 62 sHCC nodules (60 patients), 19 nodules (19 patients) had MVI, while 43 nodules (41 patients) had no MVI. The study included 47 men and 13 women, with a median age of 55 (34–83). Comparisons of clinical characteristics between sHCC with and without MVI were summarized in Table 1. Alanine aminotransferase (ALT) was higher in sHCC patients with MVI than those without MVI. Concerning histologic features, sHCC with MVI showed worse tumor differentiation than those without MVI (p < 0.05).

Table 1 The clinical and pathological features of the patients

Imaging features results

Univariate analysis of clinical, pathological and imaging features

Among MRI features showed in Table 2, on non–enhancement phase, T2–DW mismatch was significantly more frequent in sHCC with MVI than those without MVI (p < 0.05). On enhancement phase without HBP, rim enhancement, capsule enhancement and AP halo sign were associated with MVI (p < 0.05). All imaging features including high uptake, halo sign, spicule sign and brush sign on HBP were more common in sHCC with MVI than those without MVI (p < 0.05). Tumor morphology of lobulated and irregular shape in sHCC with MVI was significantly more frequent than that of sHCC without MVI (p < 0.05).Besides, the round shape showed more common in sHCC without MVI than those with MVI (p < 0.05). Themorphology features of sHCC are presented in Fig. 4. A round shape of sHCC with MVI accounts for6.80% (3/44),a lobulated shape accounts for 45.80%(11/24), an irregular shape accounts for 80.00%(4/5), a spicule sign accounts for 80.00%(12/15) and a brush sign accounts for 66.70%(8/12), respectively.

Table 2 The imaging features of the patients

Univariate and multivariate logistical regression analyses of clinical, pathological and imaging features

In univariate logistical regression analysis, ALT, rim enhancement and spicule sign were associated with MVI (p < 0.05). And the association remained significant for rim enhancement and spicule sign in multivariate logistical regression analysis (p < 0.05), which were summarized in Table3.

Table 3 Univariate and multivariate analysis results

Inter observer agreement for capsule enhancement (κ = 0.844), rim enhancement (κ = 0.749) and HBP spicule sign (κ = 0.876) was good or excellent (Table 4).

Table 4 The interobserver variability for radiological features

Evaluate the diagnostic ability of gadoxetic acid-enhanced MRI

We analyzed the diagnostic efficacy of two significant imaging phases and their combination for predicting MVI (Fig. 5, Table 5).When two of these imaging phases were combined, the area under the ROC curve (AUROC) was higher than the non–HBP phase or HBP separately.

Fig. 5.
figure 5

Comparison of receiver operating characteristics (ROC) curves for prediction of microvascular invasion

Table 5 Diagnostic efficacy of three image sequences for MVI in sHCC

The analysis of SE, SP, accuracy, PPV, and NPV were presented in Table 5.Compared to non–HBP phase or HBP, the combination of these two imaging phases showed significantly higher SE, accuracy and NPV. Consequently, the combination of these two imaging phases can predict MVI more accurately compared with them separately.

Discussion

The purpose of this research was to predict MVI in sHCC by imaging features, clinical features and pathological features, providing a direction for clinicians to choose a superior treatment strategy then improving patients′ survival.

Our research used a special contrast agent and achieved satisfactory results. Gd–EOB–DTPA, a hepatocyte–specific contrast agent, has dual enhanced information which not only exhibits a multi–phase dynamic enhancement similar to extra cell contrast medium by reducing the T1 relaxation time of tissues but also can acquire high uptake images of normal liver parenchyma after administrating the agent for 20 min. Therefore, this particular agent can deliver more information about the HCC from AP, PVP, EP and HBP. It is more effective than traditional MRI in diagnosing early HCC and sHCC [28], especially in the detection of tiny lesions [29]. Meanwhile, because of the background of high uptake of normal liver tissue on HBP, the morphology of the tumor appears much clearly [30].

Gd–EOB–DTPA contrast agent has many advantages in hepatic MRI examination, however, transient respiratory motion artifacts result in a diagnostic limitations about the observation of AP information. Finding more significant features to improve MVI diagnosis by observing the morphology of the lesions during the HBP is extremely necessary. Up to date, studies discuss the features that associated with the occurrence of MVI in sHCC were rare. Xu etal [31] proved that the high ADC value and irregular circumferential enhancement were independent predictors of MVI, which was consistent with our research results. Kim and his colleagues showed that all sHCCs with MVI were characterized by a typical dynamic pattern, hyper intensity on T2WI, DWI, atypical dynamic pattern. Instead, the size of diameter was less than 1 cm indicated the absence of MVI [32]. Our research also analyzed the signal intensity on AP and showed an insignificant result (MVI–negative32/43, 74.40% vs. MVI–positive 14/19, 73.70%,p > 0.05). The difference between Kim′s and ours may be caused by the specific classification of tumor size and the small sample size. Considering the number of samples in our research, the analysis of ADC values may produce deviations in results, so our study did not conduct further investigation. However, the relationship between the ADC value and MVI is worthfurther discussion. Besides, Ryu et al. declared including the clinical characteristics that tumor diameter ≥ 2 cm, AFP ≥ 200 ng/ml and gamma-glutamyl transferase ≥ 40 u/l can predict MVI in sHCC [14]. However, our research did not get the same results, and we regarded a relatively higher ALT value as a significant feature in MVI prediction (p < 0.05).

In our study, by comparing clinic pathological features and imaging features of non–HBP and HBP, we found that the HBP features provided us more insights for MVI diagnosis (Table 2). All of the characteristics we discovered were significantly different between MVI–positive and MVI–negative group. About 3/5 of characteristics (HBP tumor morphology, spicule sign and brush sign) were morphology features. Up to date, several studies proved that the irregular tumor shape was associated with the presence of MVI [33, 34]. In particular, our research is the first attempt to classify the irregular shape of sHCC in detail. As a result, we should pay attention to the spicule sign that is contained in most MVI–positive patients (12/19, 63.20%), and few (3/43, 7.00%) in MVI–negative sHCCs. Sign of spicule between the lobe and burr represents tumor infiltration into the base of the lobes. As an independent risk factor, our research showed a better performance in diagnosing MVI than irregular shape and brush features. The spicule sign was quoted from lung cancer and it′s detection rate was approximately 90.00%, which was a central differential diagnostic marker of pulmonary nodules [35] and predicted poor biological behavior [36]. According to our cases, it is also appropriate for the judgment of the biological behavior of sHCC. Besides, it should be noted that the morphological change is more easily discovered and acceptable for the clinician than other complex enhancement and signal features.

Except for spicule sign on HBP images, rim enhancement was another independent risk factor for diagnosing MVI on non–HBP images. There were 9 cases with MVI in all cases of rim enhancement (9/13, 69.23%), and 12 cases with MVI in all cases of none capsule enhancement (12/16, 75.00%). Rim enhancement on AP reflected the internal tissue of fiber necrosis, liquefaction or calcification caused by the insufficient blood supply. We speculated obstruction of surrounding from MVI was likely to further exacerbate the blood loss, intensifying internal necrosis as well as margin enhancement.

Finally, we divided all features into two phases, non–HBP (non–enhancement and enhancement without HBP)and HBP alone. And we compared the diagnostic capability of each phase and the combination phase. The combining phase group achieved the highest AUROC (0.917) than the two phases alone. Meanwhile, HBP image features give the best result inaccuracy and SP, which was entirely credible in predicting MVI in sHCC. To the best of our knowledge, the main reasons that the SE of the combined phase images and SP of HBP images (> 90%) in our research might be explained as follows. Firstly, Gd–EOB–DTPA–MRI can accurately discriminate cancer boundaries. Moreover, the distinction in signal between lesion tissues and surrounding normal liver parenchyma is more apparent in the HBP of Gd–EOB–DTPA–MRI than conventional contrast agents [37, 38], which contributes to the highest SP in HBP than non–HBP. Secondly, owing to the high performance of radiomics in the stable calculation, repeatability, indefatigability, and no interference of human subjectivity. Our research made a much higher SE and SP than those ever reported [39,40,41,42]. Thirdly, we extracted almost the whole sHCC features on HBP, including the three–dimensional features (e.g., morphology and smoothness), making the study much more credible and representative. Moreover, we found that the NPV of non–HBP images was very low, which suggested a high possibility of missed diagnosis. Thus, we suggested that the characteristics of HBP images alone as predominant indicators, especially morphologic features, which could increase radiologist confidence in diagnosing sHCC with MVI.

However, our study had the following limitations. Firstly, this was a retrospective study that may have included selection bias. Secondly, the number of the sample was insufficient, which may produce errors in data analysis. Thirdly, it was a single center study, which may also cause sample selection bias. Therefore, it is worthwhile to conduct further research to verify our results.

Conclusions

This study suggested that Gd–EOB–DTPA–MRI was recommended as a routine preoperative examination for sHCC to improve the accuracy of MVI diagnosis. The morphologies of HBP imaging, especially sign of spicules, showed high accuracy in diagnosing MVI of sHCC.

Availability of data and materials

The datasets generated and/or analyzed in the current study are not publicly available due to patient privacy protection but are available from the corresponding author on reasonable request.

Abbreviations

HCC:

hepatocellular carcinoma

sHCC:

small hepatocellular carcinoma

MVI:

microvascular invasion

Gd–EOB–DTPA–MRI:

gadolinium–ethoxybenzyl–diethylenetriamine penta–acetic acid enhanced magnetic resonance imaging

T2WI:

T2–weighted

T1WI:

T1–weighted images

AP:

arterial phase

PVP:

portal vein phase

EP:

equilibrium phase

MRI:

magnetic resonance imaging

PACS:

picture archiving and communication system

SI:

signal intensity

T2–DW:

T2–weighted and diffusion–weighted imaging

ROC:

receiver operating characteristic

SE:

sensitivity

SP:

specificity

PPV:

positive predictive value

NPV:

negative predictive value

HBV:

hepatitis B virus

AST:

aspartate aminotransferase

GGT:

gamma–glutamyl transferase

ALT:

alanine aminotransferase

OR:

odds ratio

CI:

confidence interval

AUROC:

the area under the ROC curve

CEA:

carcinoembryonic antigen

CA199:

carbohydrate antigen 199

AFP:

alpha–fetoprotein

References

  1. Wu J, Yang S, Xu K, Ding C, Zhou Y, Fu X, et al. Patterns and trends of liver cancer incidence rates in Eastern and Southeastern Asian countries (1983–2007) and predictions to 2030. Gastroenterology. 2018;154(6):1719-28.e5.

    Article  Google Scholar

  2. Villanueva A. Hepatocellular carcinoma. N Engl J Med. 2019;380(15):1450–62.

    Article  CAS  Google Scholar

  3. Kanwal F, Befeler A, Chari RS, Marrero J, Kahn J, Afdhal N, et al. Potentially curative treatment in patients with hepatocellular cancer–results from the liver cancer research network. Aliment Pharmacol Ther. 2012;36(3):257–65.

    Article  CAS  Google Scholar

  4. Fukuda S, Itamoto T, Nakahara H, Kohashi T, Ohdan H, Hino H, et al. Clinicopathologic features and prognostic factors of resected solitary small-sized hepatocellular carcinoma. Hepato Gastroenterol. 2005;52(64):1163–7.

    Google Scholar

  5. Golfieri R, Renzulli M, Lucidi V, Corcioni B, Trevisani F, Bolondi L. Contribution of the hepatobiliary phase of Gd-EOB-DTPA-enhanced MRI to dynamic MRI in the detection of hypovascular small (</= 2 cm) HCC in cirrhosis. Eur Radiol. 2011;21(6):1233–42.

    Article  Google Scholar

  6. Lee YJ, Lee JM, Lee JS, Lee HY, Park BH, Kim YH, et al. Hepatocellular carcinoma: diagnostic performance of multidetector CT and MR imaging-a systematic review and meta-analysis. Radiology. 2015;275(1):97–109.

    Article  Google Scholar

  7. Lee S, Kim SH, Lee JE, Sinn DH, Park CK. Preoperative gadoxetic acid-enhanced MRI for predicting microvascular invasion in patients with single hepatocellular carcinoma. J Hepatol. 2017;67(3):526–34.

    Article  CAS  Google Scholar

  8. Zhu F, Yang F, Li J, Chen W, Yang W. Incomplete tumor capsule on preoperative imaging reveals microvascular invasion in hepatocellular carcinoma: a systematic review and meta-analysis. Abdom Radiol (New York). 2019;44(9):3049–57.

    Article  Google Scholar

  9. Zhao W, Liu W, Liu H, Yi X, Hou J, Pei Y, et al. Preoperative prediction of microvascular invasion of hepatocellular carcinoma with IVIM diffusion-weighted MR imaging and Gd-EOB-DTPA-enhanced MR imaging. PLoS ONE. 2018;13(5):e0197488.

    Article  Google Scholar

  10. Huang M, Liao B, Xu P, Cai H, Huang K, Dong Z, et al. Prediction of microvascular invasion in hepatocellular carcinoma: preoperative Gd-EOB-DTPA-dynamic enhanced MRI and histopathological correlation. Contrast Media Mol Imaging. 2018;2018:9674565.

    PubMed  PubMed Central  Google Scholar

  11. Wu TH, Hatano E, Yamanaka K, Seo S, Taura K, Yasuchika K, et al. A non-smooth tumor margin on preoperative imaging predicts microvascular invasion of hepatocellular carcinoma. Surg Today. 2016;46(11):1275–81.

    Article  CAS  Google Scholar

  12. Zeng F, Chen B, Zeng J, Wang Z, Xiao L, Deng G. Preoperative neutrophil-lymphocyte ratio predicts the risk of microvascular invasion in hepatocellular carcinoma: A meta-analysis. Int J Biol Markers. 2019;34(3):213–20.

    Article  CAS  Google Scholar

  13. Chen J, Zhou J, Kuang S, Zhang Y, Xie S, He B, et al. Liver imaging reporting and data system category 5: MRI predictors of microvascular invasion and recurrence after hepatectomy for hepatocellular carcinoma. AJR Am J Roentgenol. 2019;213(4):821–30.

    Article  Google Scholar

  14. Ryu T, Takami Y, Wada Y, Tateishi M, Hara T, Yoshitomi M, et al. A clinical scoring system for predicting microvascular invasion in patients with hepatocellular carcinoma within the milan criteria. J Gastrointest Surg. 2019;23(4):779–87.

    Article  Google Scholar

  15. Reginelli A, Vanzulli A, Sgrazzutti C, Caschera L, Serra N, Raucci A, et al. Vascular microinvasion from hepatocellular carcinoma: CT findings and pathologic correlation for the best therapeutic strategies. Med Oncol. 2017;34(5):93.

    Article  Google Scholar

  16. Lee S, Kim SH, Lee JE, Sinn DH, Park CK. Preoperative gadoxetic acid-enhanced MRI for predicting microvascular invasion in patients with single hepatocellular carcinoma. J Hepatol. 2017;67(3):526–34.

    Article  CAS  Google Scholar

  17. Wei Y, Huang Z, Tang H, Deng L, Yuan Y, Li J, Song B. IVIM improves preoperative assessment of microvascular invasion in HCC. Eur Radiol. 2019;29(10):5403–14.

    Article  Google Scholar

  18. Piscaglia F, Wilson SR, Lyshchik A, Cosgrove D, Dietrich CF, Jang HJ, et al. American college of radiology contrast enhanced ultrasound liver imaging reporting and data system (CEUS LI-RADS) for the diagnosis of hepatocellular carcinoma: a pictorial essay. Ultraschall in der Medizin. 2017;38(3):320–4.

    Article  Google Scholar

  19. Honda H, Ochiai K, Adachi E, Yasumori K, Hayashi T, Kawashima A, et al. Hepatocellular carcinoma: correlation of CT, angiographic, and histopathologic findings. Radiology. 1993;189(3):857–62.

    Article  CAS  Google Scholar

  20. Horvat N, Monti S, Oliveira BC, Rocha CCT, Giancipoli RG, Mannelli L. State of the art in magnetic resonance imaging of hepatocellular carcinoma. Radiol Oncol. 2018;52(4):353–64.

    Article  Google Scholar

  21. Kim SS, Kim SH, Song KD, Choi SY, Heo NH. Value of gadoxetic acid-enhanced MRI and diffusion-weighted imaging in the differentiation of hypervascular hyperplastic nodule from small (<3 cm) hypervascular hepatocellular carcinoma in patients with alcoholic liver cirrhosis: a retrospective case-control study. J Mag Resonan Imaging JMRI. 2020;51(1):70–80.

    Article  Google Scholar

  22. Yang C, Wang H, Sheng R, Ji Y, Rao S, Zeng MJCI. Microvascular invasion in hepatocellular carcinoma: is it predictable with a new, preoperative application of diffusion-weighted imaging? Clin Imaging. 2017;41:101–5.

    Article  Google Scholar

  23. Yoon JH, Park JW, Lee JM. Noninvasive diagnosis of hepatocellular carcinoma: elaboration on Korean liver cancer study group-national cancer center Korea practice guidelines compared with other guidelines and remaining issues. Korean J Radiol. 2016;17(1):7–24.

    Article  Google Scholar

  24. Jw C, Jm L, Sj K, Jh Y, Jh B, Jk H, et al. Hepatocellular carcinoma: imaging patterns on gadoxetic acid-enhanced MR Images and their value as an imaging biomarker. Radiology. 2013;267(3):776–86.

    Article  Google Scholar

  25. Kitao A, Zen Y, Matsui O, Gabata T, Kobayashi S, Koda W, et al. Hepatocellular carcinoma: signal intensity at gadoxetic acid-enhanced MR Imaging–correlation with molecular transporters and histopathologic features. Radiology. 2010;256(3):817–26.

    Article  Google Scholar

  26. Kudo M, Kitano M, Sakurai T, Nishida N. General rules for the clinical and pathological study of primary liver cancer, nationwide follow-up survey and clinical practice guidelines: the outstanding achievements of the liver cancer study group of Japan. Digest Dis (Basel Swit). 2015;33(6):765–70.

    Article  Google Scholar

  27. Shrout PE, Fleiss JL. Intraclass correlations: uses in assessing rater reliability. Psychol Bull. 1979;86(2):420.

    Article  CAS  Google Scholar

  28. Li X, Wang X, Zhao D, Sun J, Liu J, Lin D, et al. Application of Gd-EOB-DTPA-enhanced magnetic resonance imaging (MRI) in hepatocellular carcinoma. World J Surg Oncol. 2020;18(1):219.

    Article  Google Scholar

  29. Semaan S, Vietti Violi N, Lewis S, Chatterji M, Song C, Besa C, et al. Hepatocellular carcinoma detection in liver cirrhosis: diagnostic performance of contrast-enhanced CT vs. MRI with extracellular contrast vs. gadoxetic acid. Eur Radiol. 2020;30(2):1020–30.

    Article  CAS  Google Scholar

  30. Hu H, Zheng Q, Huang Y, Huang XW, Lai ZC, Liu J, et al. A non-smooth tumor margin on preoperative imaging assesses microvascular invasion of hepatocellular carcinoma: a systematic review and meta-analysis. Sci Rep. 2017;7(1):15375.

    Article  Google Scholar

  31. Xu P, Zeng M, Liu K, Shan Y, Xu C, Lin J. Microvascular invasion in small hepatocellular carcinoma: is it predictable with preoperative diffusion-weighted imaging? J Gastroenterol Hepatol. 2014;29(2):330–6.

    Article  Google Scholar

  32. Kim MJ, Lee M, Choi JY, Park YN. Imaging features of small hepatocellular carcinomas with microvascular invasion on gadoxetic acid-enhanced MR imaging. Eur J Radiol. 2012;81(10):2507–12.

    Article  Google Scholar

  33. Huang M, Liao B, Xu P, Cai H, Huang K, Dong Z, Feng ST. et al. Prediction of microvascular invasion in hepatocellular carcinoma: preoperative Gd-EOB-DTPA-dynamic enhanced MRI and histopathological correlation. Contrast Med Mol Imaging. 2018;2018:9674565.

  34. Kim H, Park MS, Choi JY, Park YN, Kim MJ, Kim KS, et al. Can microvessel invasion of hepatocellular carcinoma be predicted by pre-operative MRI? Eur Radiol. 2009;19(7):1744–51.

    Article  Google Scholar

  35. Zhang X, Yan HH, Lin JT, Wu ZH, Liu J, Cao XW, et al. Comparison of three mathematical prediction models in patients with a solitary pulmonary nodule. Chin J Cancer Res. 2014;26(6):647–52.

    PubMed  PubMed Central  Google Scholar

  36. Shi Z, Wang Y, He X. Differential diagnosis of solitary pulmonary nodules with dual-source spiral computed tomography. Exp Therapeut Med. 2016;12(3):1750–4.

    Article  Google Scholar

  37. Joo I, Lee JM. Recent advances in the imaging diagnosis of hepatocellular carcinoma: value of gadoxetic acid-enhanced MRI. Liver Cancer. 2016;5(1):67–87.

    Article  CAS  Google Scholar

  38. Choi JW, Lee JM, Kim SJ, Yoon JH, Baek JH, Han JK, et al. Hepatocellular carcinoma: imaging patterns on gadoxetic acid-enhanced MR Images and their value as an imaging biomarker. Radiology. 2013;267(3):776–86.

    Article  Google Scholar

  39. Feng ST, Jia Y, Liao B, Huang B, Zhou Q, Li X, et al. Preoperative prediction of microvascular invasion in hepatocellular cancer: a radiomics model using Gd-EOB-DTPA-enhanced MRI. Eur Radiol. 2019;29(9):4648–59.

    Article  Google Scholar

  40. Cha DI, Jang KM, Kim SH, Kim YK, Kim H, Ahn SH. Preoperative prediction for early recurrence can be as accurate as postoperative assessment in single hepatocellular carcinoma patients. Korean J Radiol. 2020;21(4):402–12.

    Article  Google Scholar

  41. Kim KA, Kim MJ, Jeon HM, Kim KS, Choi JS, Ahn SH, et al. Prediction of microvascular invasion of hepatocellular carcinoma: usefulness of peritumoral hypointensity seen on gadoxetate disodium-enhanced hepatobiliary phase images. J Magnet Resonan Imaging JMRI. 2012;35(3):629–34.

    Article  Google Scholar

  42. Ahn SY, Lee JM, Joo I, Lee ES, Lee SJ, Cheon GJ, et al. Prediction of microvascular invasion of hepatocellular carcinoma using gadoxetic acid-enhanced MR and (18)F-FDG PET/CT. Abdom Imaging. 2015;40(4):843–51.

    Article  Google Scholar

Download references

Acknowledgements

We are thankful to the data providers for sharing their precious resources.

Funding

This study was supported by ‘Tou Yan Action’ of Heilongjiang province, the National Natural Scientific Foundation of China (No.81472322, 81872435 and No. 81672930), the Provincial Natural Science Foundation Outstanding Youth Project (JQ2019H003), the national youth talent support program for TS Zheng, the Natural Science Foundation of Heilongjiang Province (LC201437/H1617), China Postdoctoral Science Foundation (No. 2015T80369 and No. 2014M560271), and Heilongjiang Postdoctoral Science Foundation (No. LBH–Z14142, No. LBH–Z16153 and No. LBH–TZ1615), the Fok Ying Tung Education Foundation (No. 151037), Scientific research project of the health planning committee of Heilongjiang (2017130), the Academician Yu Weihan Outstanding youth foundation of Harbin Medical University for TS Zheng.

The HaiYan Funds of Harbin Medical University for Y Zhou (JJZD2020–17).The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Author information

Authors and Affiliations

Authors

Contributions

TSZ conceived or designed the work. YZ contributed to the acquisition, analysis, and interpretation of data for the work. YQZ and JHN contributed to the final approval of the version to be published. MZ analyzed and interpreted the data and revised the article. DS reviewed and edited the manuscript. CHZ and GYW collected and analyzed the clinical data. All authors read and approved the manuscript.

Corresponding authors

Correspondence to Yang Zhou or Tongsen Zheng.

Ethics declarations

Ethics approval and consent to participate

This study was approved by the Ethics Review Board of Harbin Medical University.
