Analysis of 4 imaging features in patients with COVID-19

Abstract

Background

The aim of this was to analyze 4 chest CT imaging features of patients with coronavirus disease 2019 (COVID-19) in Shenzhen, China so as to improve the diagnosis of COVID-19.

Methods

Chest CT of 34 patients with COVID-19 confirmed by the nucleic acid test (NAT) were retrospectively analyzed. Analyses were performed to investigate the pathological basis of four imaging features(“feather sign”,“dandelion sign”,“pomegranate sign”, and “rime sign”) and to summarize the follow-up results.

Results

There were 22 patients (65.2%) with typical “feather sign”and 18 (52.9%) with “dandelion sign”, while few patients had “pomegranate sign” and “rime sign”. The “feather sign” and “dandelion sign” were composed of stripe or round ground-glass opacity (GGO), thickened blood vessels, and small-thickened interlobular septa. The “pomegranate sign” was characterized as follows: the increased range of GGO, the significant thickening of the interlobular septum, complicated with a small amount of punctate alveolar hemorrhage. The “rime sign” was characterized by numerous alveolar edemas. Microscopically, the wall thickening, small vascular proliferation, luminal stenosis, and occlusion, accompanied by interstitial infiltration of inflammatory cells, as well as numerous pulmonary interstitial fibrosis and partial hyaline degeneration were observed. Repeated chest CT revealed the mediastinal lymphadenectasis in one patient. Re-examination of the NAT showed another positive anal swab in two patients.

Conclusion

“Feather sign” and “dandelion sign” were typical chest CT features in patients withCOVID-19; “pomegranate sign” was an atypical feature, and “rime sign” was a severe feature. In clinical work, accurate identification of various chest CT signs can help to improve the diagnostic accuracy of COVID-19 and reduce the misdiagnosis or missed diagnosis rate.

Peer Review reports

Background

Since the COVID-19 outbreak in December 2019, the number of confirmed cases has been rapidly increasing. So far (March 15, 2020), COVID-19, has spread to 146 countries and territories across six continents, infecting more than 164,000 and killing more than 6,400 people. Currently, COVID-19 is considered one of the worst epidemics in human history.

The COVID-19 is a lineage B betacoronavirus. According to the internationally published virus classification, there are nine types of this betacoronavirus [1], among which mouse hepatitis virus, rousettus bat coronavirus HKU9, and severe acute respiratory syndrome (SARS) are the most widely known. On February 11, 2020, the International Committee on Taxonomy of Viruses named COVID-19 as severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) [2]. Although treatment for.

SARS-CoV-2 is still not available, researchers are currently working on creating vaccines and investigating clinical features of the infected population.

Recently, Wang et al examined the CT images of asymptomatic infected patients with COVID-19 and found that chest CT scans have an essential role in the screening of the population suspected of having infection [3]. Besides, a previous report suggested that CT imaging may be very useful in the diagnosis of COVID-19 in patients with negative NAT [4]. In the present study, we analyzed clinical data and CT images of 43 COVID-19. These data could contribute to timely and accurate identification of the clinical features, laboratory test results , and CT imaging findings of COVID-19, thereby resulting in early diagnosis, quarantine, and treatment.

Methods

Patients

This study had no potential risks for patients, and there was no direct relationship between researchers and patients. The study was conducted according to the principles of the Helsinki Declaration. The ethics committee of Shekou people's Hospital waived the signing of informed consent for this retrospective study. Patients with laboratory-confirmed COVID-19 (confirmed by a reverse transcription polymerase chain reaction, RT-PCR) were recruited from three hospitals between January 22, 2020 and February 26, 2020. The number of cases included from each hospital is shown in Supplementary Table 1. Age, gender, epidemiological features, and clinical symptoms were collected from all patients.

Chest CT and image analysis

All patients underwent a chest CT scan, which was performed using GE 256-row Revolution CT, GE Light Speed 16-slice spiral CT, Siemens SOMATOM Emotion 16-row spiral CT, and GE 64-row VCT, all of which were end-inspiratory scans. For the axial-section, the slice thickness was 5mm, and the reconstruction slice thickness was 1.25 or 0.625 mm. Two radiologists (with more than ten years of work experience) analyzed all images. Five patients who received chest radiography and four with normal chest CT images were excluded. Finally, 34 patients were included in the study.

The following CT image features were observed for each patient: (a) the location, extent, and a number of lesions; (b) type of lesions (GGO, vascular thickening, pulmonary consolidation, pulmonary fibrous, interlobular septum, and solid nodules); (c) specific signs (“air bronchogram sign”, “feather sign”, “dandelion sign”, “pomegranate sign”, “rime sign”); (d) other signs (pleural effusion, mediastinal lymphadenectasis,etc). The CT images of solid nodule and pulmonary consolidation showed the density of lesions covering the vascular and bronchial shadows resembling [5]; “feather sign” or “dandelion sign” ,which was defined as the exudative lesion and thickened blood vessels forming a strip or round high-density shadow, which was very similar to the shape of feathers or dandelions (Figs. 1 and 2); “pomegranate sign”, which was defined as an exudative lesion accompanied by a small amount of bleeding, showing round and imbricate arrangement that was similar to a pomegranate (Fig. 3); “Rime sign”, which was defined as multiple exudative and punctate hemorrhage in the lesion accompanied with extensive interstitial fibrosis forming large white lung, that was similar to white rime attached to the branches (Fig. 4).

Fig. 1
figure1

A older female patient with a long residence history in an epidemic area experienced fever(38.5 °C) and sore muscle for 1 day. a Feather hand painting. b Baseline chest CT image demonstrated GGO in the right middle lobe, showing a “feathery sign” (red arrow). The nucleic acid test was negative for the first time. c Follow-up CT scan after 6 days showed that the lesions were significantly enlarged. GGO in the lungs was multiple (white arrow). The second test was positive for nucleic acid

Fig. 2
figure2

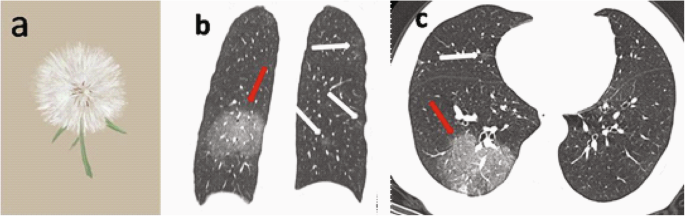

A older female patient with a long history of living in an epidemic area experiencing fever and sore throat for 4 days. a Dandelion hand painting. b Non-contrast enhanced coronal CT image shows that the right lower lobe with a circular GGO,vascular thickening, and bronchiectasis, showing a “dandelion sign” (red arrow), and multiple small patchy GGO in the left lung (White arrow). c Axial thin-section un-enhanced CT image shows a round-like GGO (red arrow) in the right lower lobe, a small piece of GGO in the right middle lobe, and the unclear border (white arrow)

Fig. 3
figure3

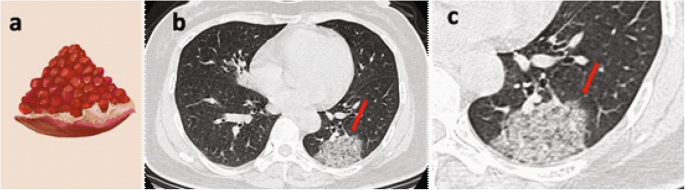

A older female patient experiencing fever and cough for 1 day,,and who had 3 days of travel history in the epidemic area before onset. a Pomegranate hand painting. b Non-contrast enhanced chest CT scan shows that the GGO in the posterior basal segment of the left lower lobe and vascular thickening, bronchiectasis, and interlobular septal thickening, showing a “pomegranate sign” (red arrow). c A partially enlarged image at the same level as in figure b, suggesting that the GGO in the posterior basal segment of the left lower lobe showed a “pomegranate sign” (red arrow)
